HKT Horns / Parts for Aftermarket

About Horns
and Related Parts
for Aftermarket

HKT has been selling horns and related parts for aftermarket mainly in the Japanese market.
Under the former company name, "Kitahara" horns, HKT has been receiving patronage from truck lovers across Japan for a long time.

<Cautions for use>
These horns must be used for only trucks and passenger vehicles.
Please use HKT air horns with air-tanks / compressors exclusively made for air horns.

"The standard pressure is 981kPa or less"

If horns are not used under the conditions described above, malfunctioning such as crackle or distorted sound may occur.
HKT air horns that are purchased in resale, secondhand and auctions market will not be covered by HKT customer support.

New Products Information

Special website for new products

Kitahara (former company name: Kitahara Seisakusho), the first company in Japan to start producing air horns for trucks and buses, has developed a full-fledged air horn that cannot be imitated by other companies.

Celebrating the release of the new products, we have opened the special website.

Click here and check the special website.

NEW PRODUCTS

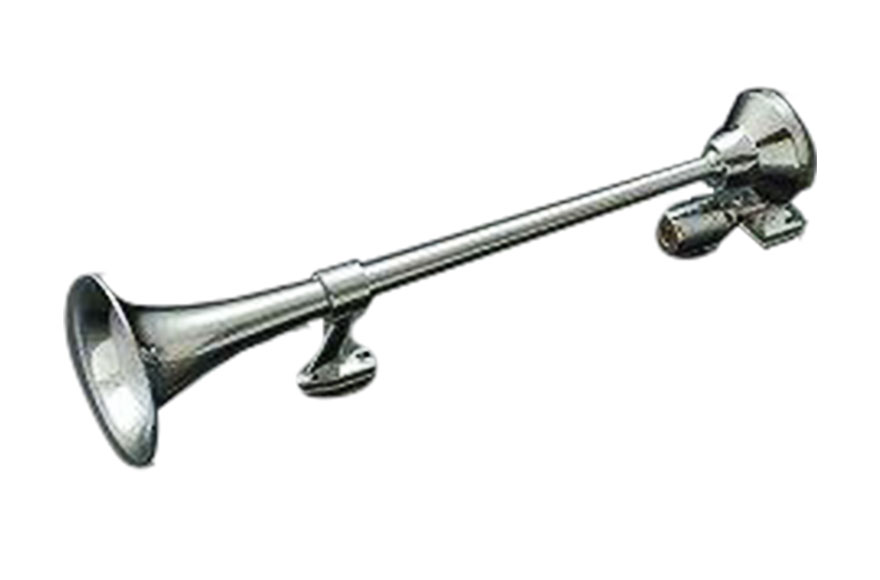

SUPER BIG TAKUMI

Part No.：HS-37AL(Aluminum) / HS-37SU(Stainless) / HS-37BR(Brass) / HS-37TT(Titanium)
Voltage：24V
Rated Current：24V(2A or less)
Size : Total length 850mm
Maximum diameter: φ198

Sound sample

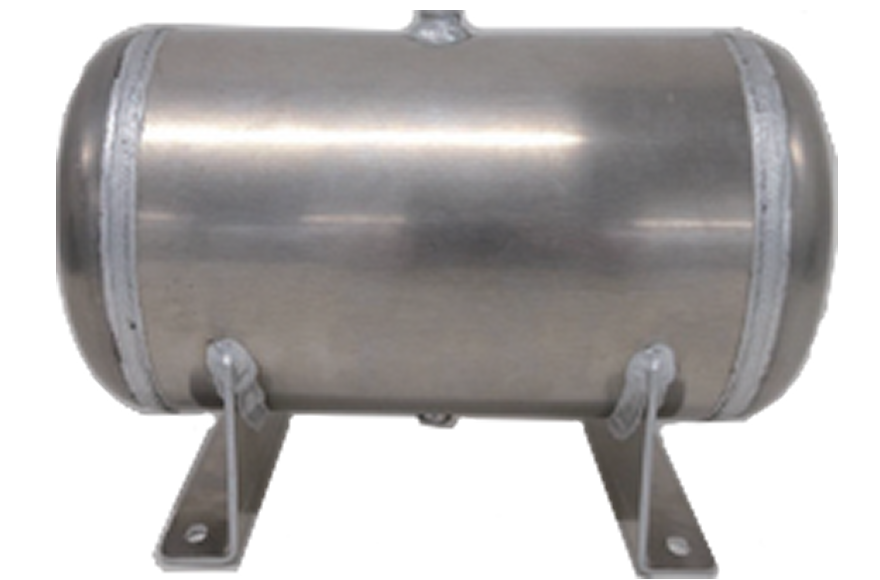

Air tank 8L

Part No.：A-925
Dimensions：230 × 400 × 180(mm)
Accessories : Square Head Tapered Plug R1/4 x 2
　　　　　　 : Square Head Tapered Plug R1/8 x 3
　　　　　　 : Drain cock x 1
　　　　　　 : Air gauge x 1
　　　　　　 : Air tube joint x 1

AIR HORN KIWAMI

Part No.：HN-013
Dimensions：H110×W300×D75
Voltage：24V
Rated current：24V(1.6A or less)
Frequency：HIGH : 500Hz LOW : 440Hz
Working pressure：931kPa or less
Accessories : Connector

Sound sample

Products

e-Horn 150Φ KIWAMI（For agricultural and construction machinery）

Part No.：H-606AS
Voltage：24V
Rated Current：24V
Working Voltage Range：20V～28V
Working Temperature Range : -20℃～80℃
Frequency：HIGH : 333Hz LOW : 303Hz
Dimensions：Φ153×D90
Country of origin：Taiwan (made by HKT Taiwan)

Yankee Chrome

Part No. : HS21A/HS21B
Voltage : 24V(HS21A) / 12V(HS21B)
Rated Current : 24V(2A or less) / 12V(3A or less)
Frequency : HIGH : 570Hz LOW : 430Hz
Dimensions : H95×W305×D175
Working pressure : 981kPa or less

Sound sample

Big Horn

Part No. : HS31A/HS31B
Voltage : 24V(HS31A) / 12V(HS31B)
Rated Current : 24V(2A or less) / 12V(3A or less)
Frequency : 185Hz
Dimensions : H165×W650×D155
Working pressure : 981kPa or less

Sound sample

Yankee Tank Set

Part No. : H244
Voltage : Compatible with 12V and 24V
Rated Current : 12V(3A or less) / 24V(6A or less)
Frequency : HIGH : 570Hz LOW : 430Hz
Dimensions : -
Working pressure : 981kPa or less

Sound sample

HKT 150's Chrome *unavailable

Part No. : H601
Voltage : 12V
Rated Current : 8A
Frequency : HIGH : 330Hz LOW : 290Hz
Dimensions : Φ155×D95

Sound sample

HKT Super Fanfaren *unavailable

Part No. : H700
Voltage : 12V
Frequency : HIGH : 510Hz LOW : 420Hz
Dimensions : Φ80 ×D85

Sound sample

Compressor (For air horn) *unavailable

Part No. : GX240(A-961) / GX120(A-960)
Voltage : 24V(GX240) / 12V(GX120)
Dimensions : H155×W210×D115

Air Tank 3.5L

Part No. : A-921
Pressure resistance : 981kPa or less
Dimensions : Φ126×H295

Horn Valve

Part No. : HV30 / HV31 / HV32
Voltage : Compatible with 12V and 24V (HV30) / 12V (HV31) / 24V (HV32)
Rated Current : HV30 12V(3A or less) / 24V(6A or less)
　　　　　　　 : HV31 12V(3A or less)
　　　　　　　 : HV32 24V(2A or less)
Note : Installing with PF screws (Lock nuts included)
Working pressure : 981kPa or less

Horn Valve

Part No. : HV29
Voltage : Compatible with 12V and 24V
Rated Current : 12V(3A or less) / 24V(6A or less)
Note : Installing with PT screws (Former Yankee Horn series)
Working pressure : 981kPa or less
